Part 3 Task Scheduling

1. Scheduler he scheduler is a piece of software inside the operating system in charge of figuring out which task should run at each tick.

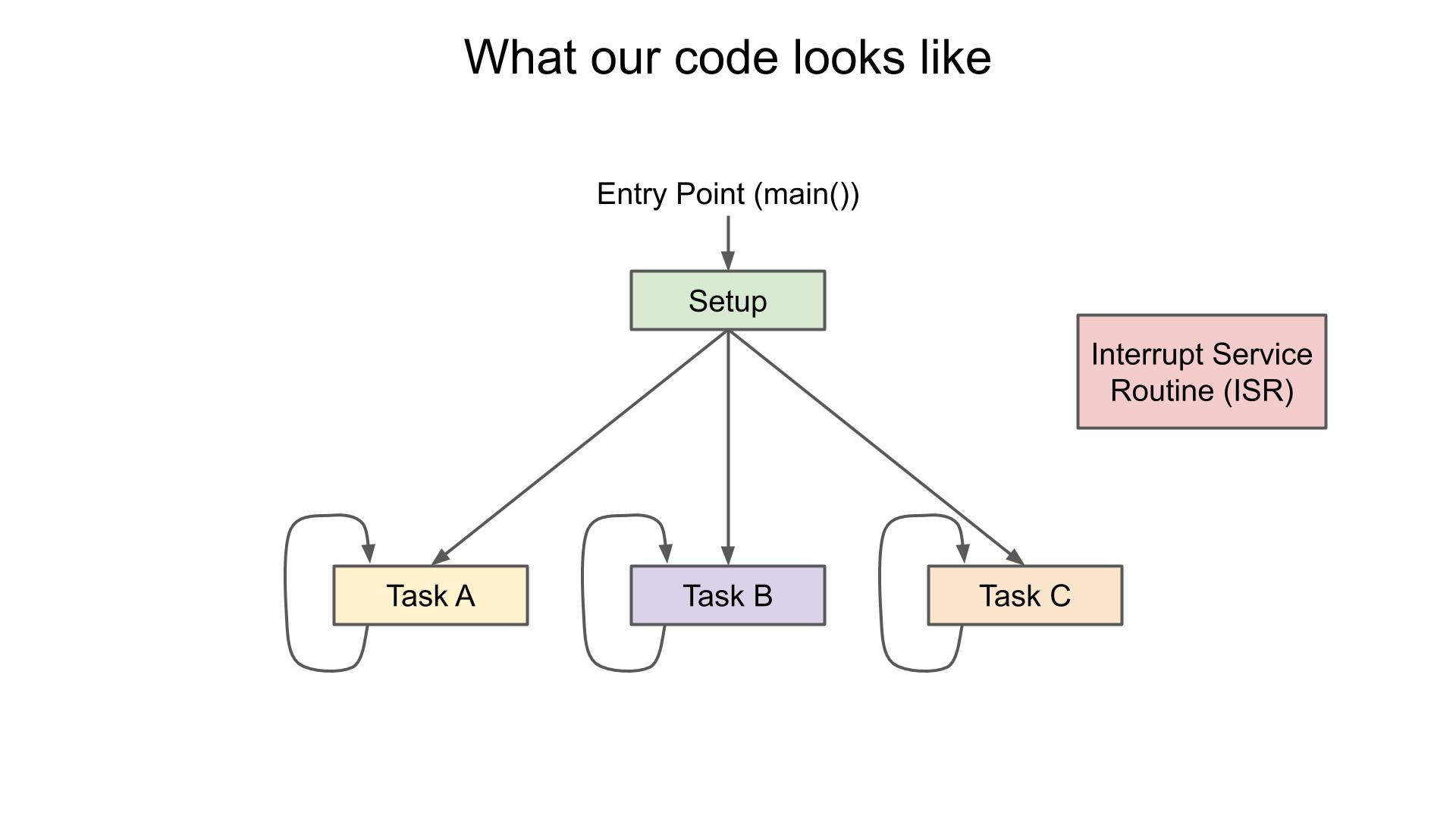

2. Task Handler In a single-core system, the CPU must divide up the tasks into time slices so that they can appear to run concurrently. The scheduler in an operating system is charged with figuring out which task to run each time slice.

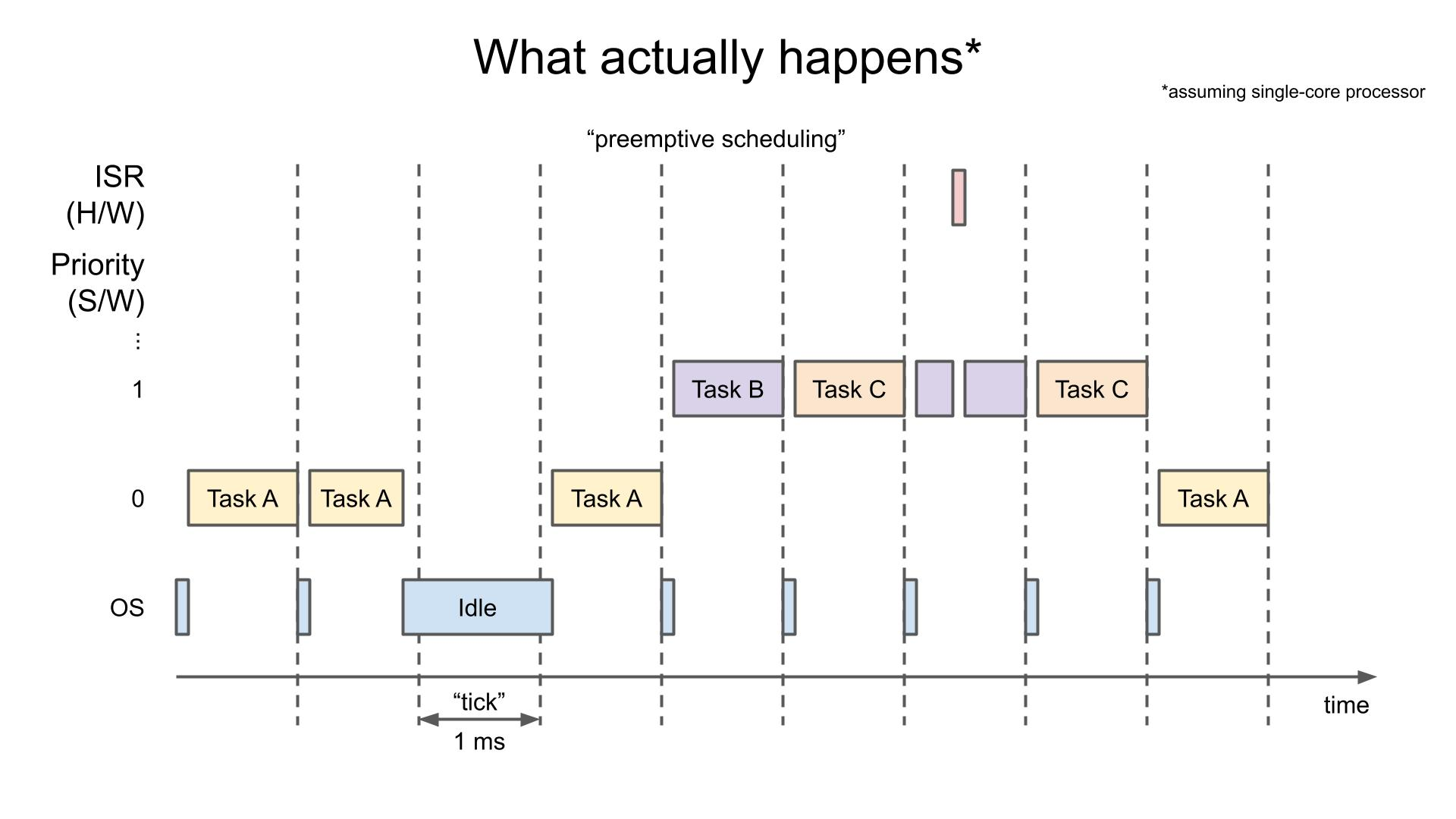

3. Time Slice In a single-core system, the CPU must divide up the tasks into time slices so that they can appear to run concurrently. The scheduler in an operating system is charged with figuring out which task to run each time slice.

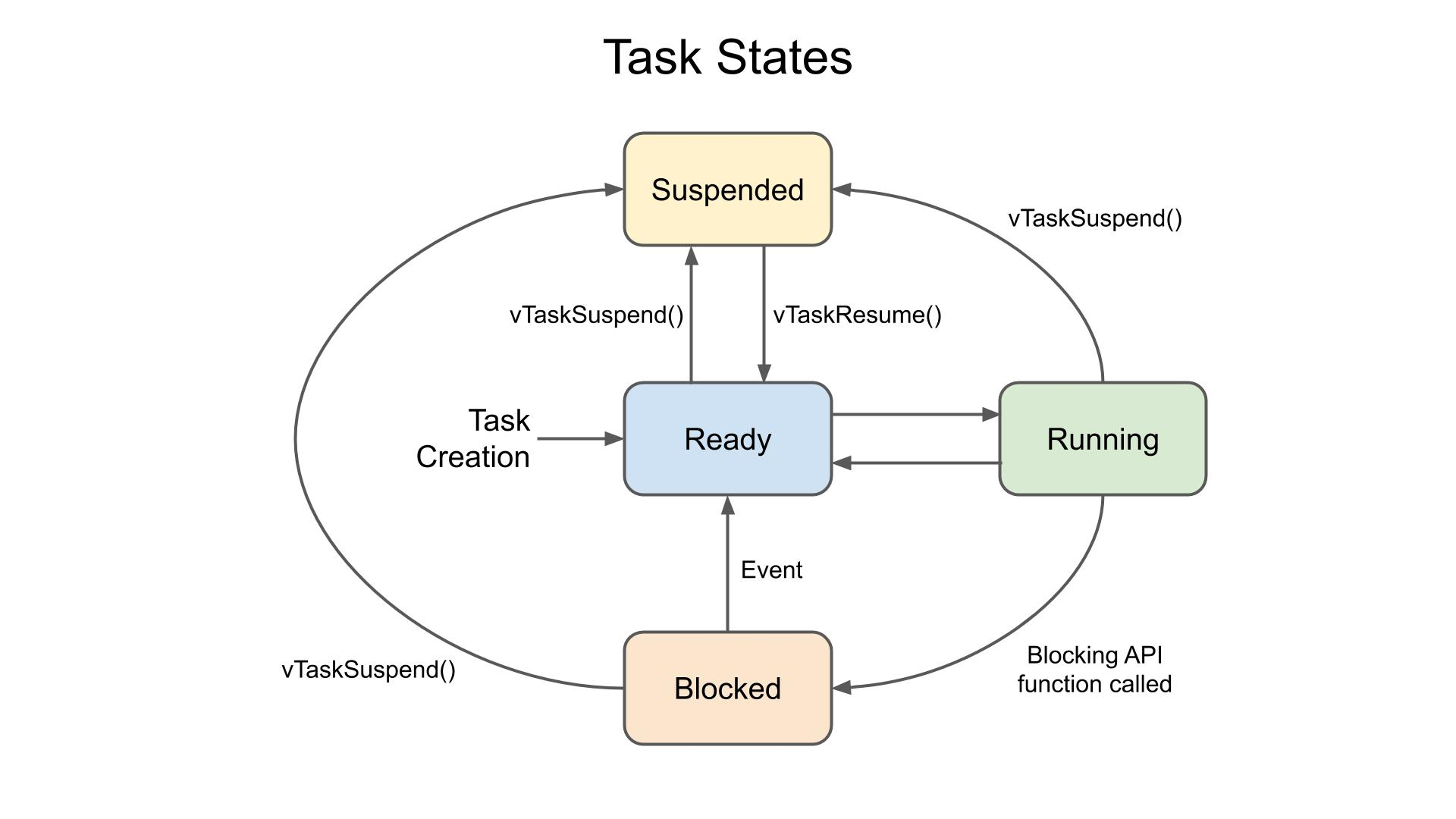

4. Task states Tasks in FreeRTOS can be in one of four states

Next Step

1. Task Creation in freeRTOS

2. Task Creation in Vanilla FreeRTOS

Example

#include <Arduino.h>

#include "freertos/FreeRTOS.h"
#include "freertos/task.h"

// Use only 1 core for FreeRTOS demo tasks
#if CONFIG_FREERTOS_UNICORE
static const BaseType_t app_cpu = 0;
#else
static const BaseType_t app_cpu = 1;
#endif

// Task Handles
TaskHandle_t task_1 = NULL; // LED Toggle Task
TaskHandle_t task_2 = NULL; // Serial Monitor Task

// Pin
static const int ledPin = BUILTIN_LED;   // On-board LED pin
int16_t delayTime = 500;                 // Delay time in milliseconds
int8_t kill_task1 = 0, enable_task1 = 0; // Flags to control task termination and recreation

// Task 1 - Blink LED
void toggleLED(void *parameter)
{
  while (true)
  {
    digitalWrite(ledPin, HIGH);
    vTaskDelay(delayTime / portTICK_PERIOD_MS);
    digitalWrite(ledPin, LOW);
    vTaskDelay(delayTime / portTICK_PERIOD_MS);
  }
}

// Task 2 - Read Serial Monitor
void readSerialMonitor(void *parameter)
{
  while (true)
  {
    if (Serial.available() > 0)
    {
      String input = Serial.readStringUntil('\n');
      int16_t inputDelay = input.toInt();
      if (inputDelay > 0)
      {
        delayTime = inputDelay; // Copy input to delayTime
        Serial.print("Delay time set to: ");
        Serial.println(delayTime);
        if (inputDelay == 256)
        {
          Serial.println("Terminating LED toggle task.");
          kill_task1 = 1;
        }
        else if (inputDelay == 512)
        {
          enable_task1 = 1;                     // Set flag to terminate task in loop()
          vTaskDelay(100 / portTICK_PERIOD_MS); // Small delay to ensure task
        }
      }
      else
      {
        Serial.println("Please enter a valid positive integer for delay time.");
      }
    }
    vTaskDelay(100 / portTICK_PERIOD_MS); // Small delay to avoid busy waiting
  }
}

void setup()
{
  pinMode(ledPin, OUTPUT);
  Serial.begin(115200);

  vTaskDelay(4000 / portTICK_PERIOD_MS); // Wait for Serial to initialize

  Serial.println(" Demo: FreeRTOS on ESP32 - Task Handles ");
  // Print Self Priority
  Serial.print("Setup and loop running on core: ");
  Serial.println(xPortGetCoreID());
  Serial.print("with priority: ");
  Serial.println(uxTaskPriorityGet(NULL));

  Serial.println(" Enter delay time in milliseconds for LED toggle.");
  Serial.println(" 1. 256 - terminate LED task");
  Serial.println(" 2. 512 - recreate LED task");

  // Create Blink LED Task
  xTaskCreatePinnedToCore( // Use xTaskCreate() in vanilla FreeRTOS
      toggleLED,           // Name of the task
      "Toggle LED Task",   // Name of the task (for debugging)
      1024,                // Stack size (in words)
      NULL,                // Task input parameter
      1,                   // Priority of the task
      &task_1,             // Task handle
      app_cpu              // Run on one core for demo purposes (ESP32 only)
  );
  // If this was vanilla FreeRTOS, you'd want to call vTaskStartScheduler() in
  // main after setting up your tasks.
  xTaskCreatePinnedToCore(   // Use xTaskCreate() in vanilla FreeRTOS
      readSerialMonitor,     // Name of the task
      "Read Serial Monitor", // Name of the task (for debugging)
      1024,                  // Stack size (in words)
      NULL,                  // Task input parameter
      2,                     // Highest Priority
      &task_2,               // Task handle
      app_cpu                // Run on one core for demo purposes (ESP32 only)
  );
}

void loop()
{
  if (kill_task1 == 1)
  {
    if (task_1 != NULL)
    {
      vTaskDelete(task_1);
      task_1 = NULL;
      digitalWrite(ledPin, HIGH); // Ensure LED is turned off
      Serial.println("LED toggle task terminated.");
      kill_task1 = 0; // Reset kill
    }
  }

  if (enable_task1 == 1)
  {
    if (task_1 == NULL)
    {
      // Recreate Blink LED Task
      xTaskCreatePinnedToCore( // Use xTaskCreate() in vanilla FreeRTOS
          toggleLED,           // Name of the task
          "Toggle LED Task",   // Name of the task (for debugging)
          1024,                // Stack size (in words)
          NULL,                // Task input parameter
          1,                   // Priority of the task
          &task_1,             // Task handle
          app_cpu              // Run on one core for demo purposes (ESP32 only)
      );
      Serial.println("LED toggle task recreated.");
      enable_task1 = 0; // Reset enable flag
    }
  }
}
